Not currently implemented

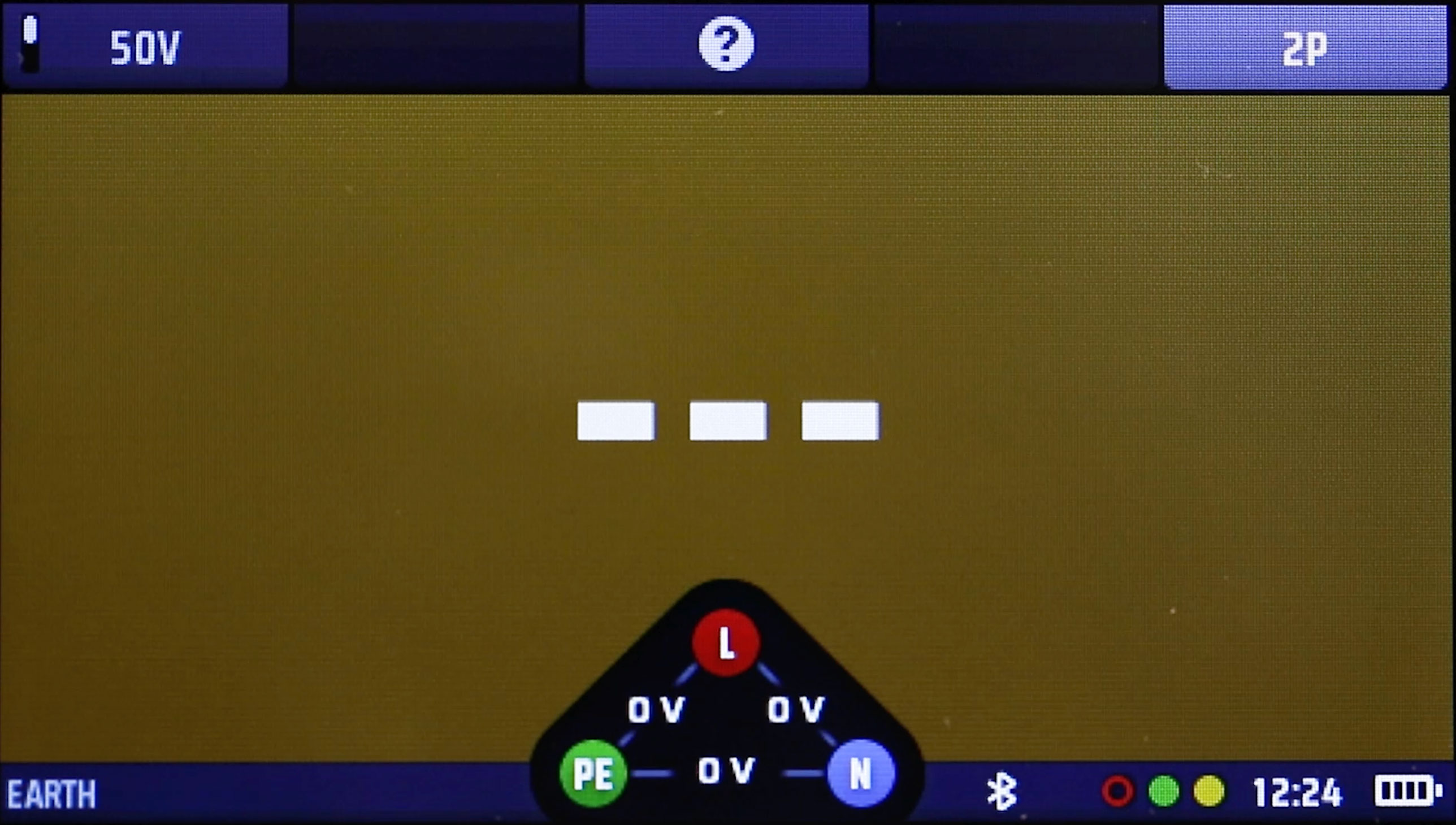

Implementing a two-wire method for acquiring the resistance of earth/ground stakes in a TT earth installation to insure compliance.

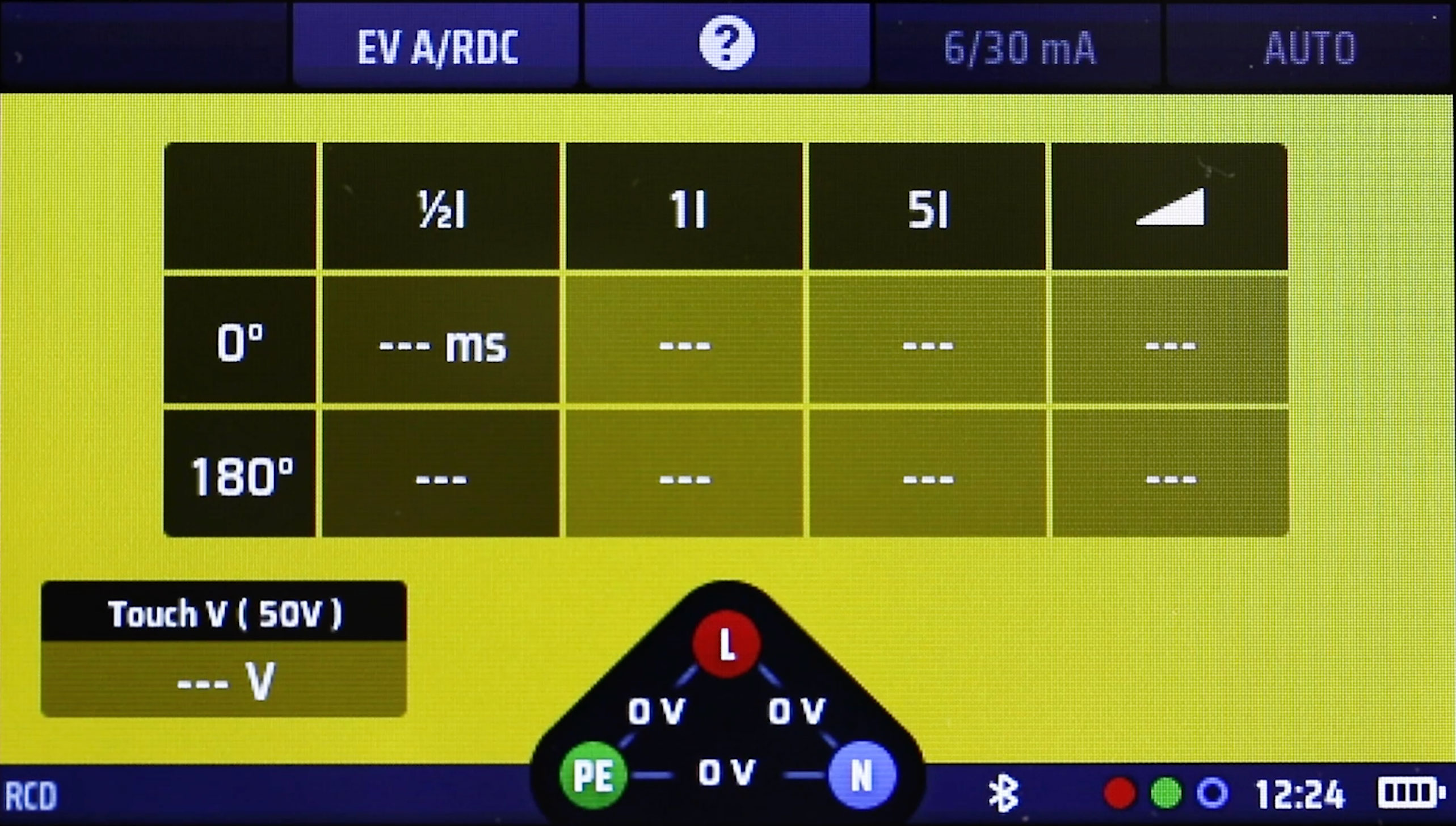

Capture the trip time and current of RCDs, RCBOs, and RDCs individually or using the unique customer-configurable auto-sequence table.
Enables the acquisition of impedances on live electrical circuits using Megger's true loop technology and the patented confidence meter for fast, stable, and consistent results on standard and RCD-protected circuits down to 0.001 ohms.
Completely shuts the system down, avoiding accidentally switching the instrument on in transit.
The ability to acquire AC or DC voltages and frequency across a wide spectrum of applications, especially single and three-phase AC supplies and phase sequencing.
Measurement of current in live conductors using a current clamp, avoiding the need for direct contact with hazardous circuits.
Used to ensure individual cable resistances meet the minimum value required to ensure the correct operation of circuit-protected devices such as MCBs.
For confirming that the insulation resistance between the circuit conductors and the earth/ground meet the minimum requirements defined by the electrical testing standards.
This section allows you to configure and save basic settings such as date and time, as well as specific settings for individual measurements.
Not only have we redesigned the physical interface of the product for ease of use, we've created a more intuitive working experience

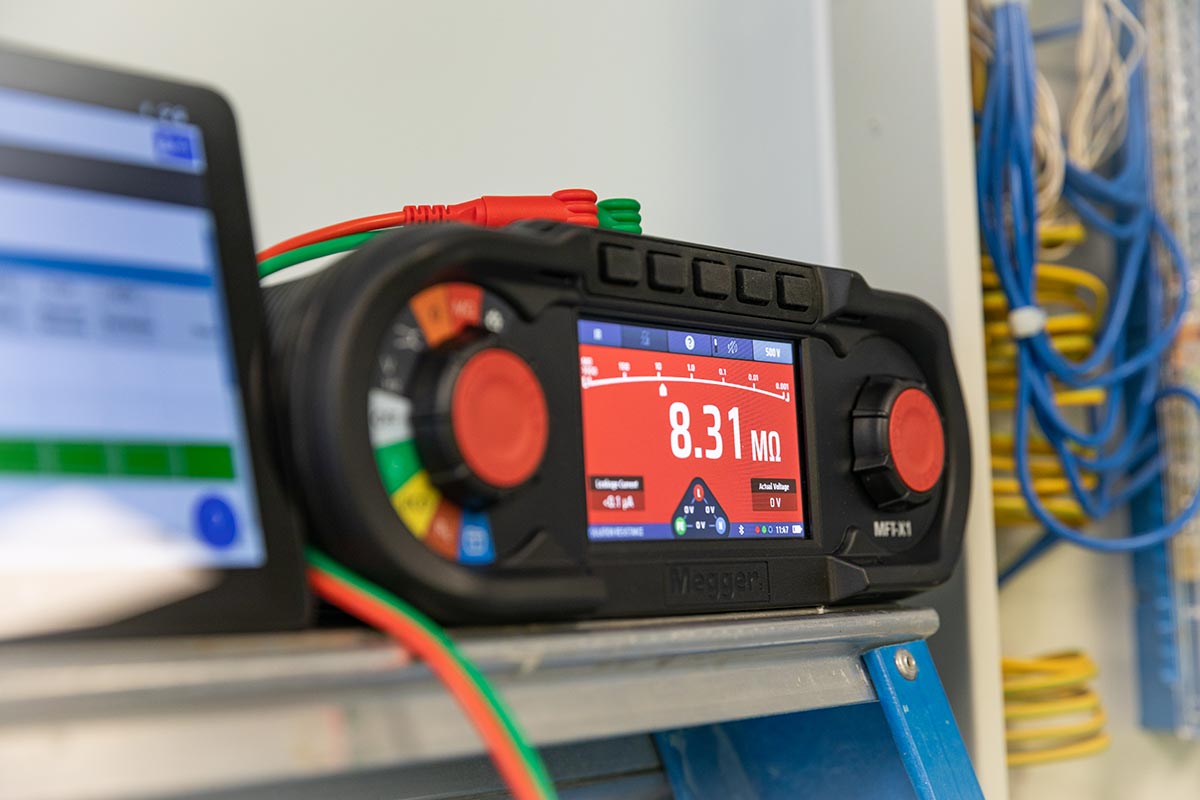

Save yourself hours of operational work by combining the MFTX1 with Certsuite™, which makes reporting and certificating whilst on the job a breeze! Test results can be transferred directly to any test certificate or report via the CertSuite™ App.
The MFT-X1 is just the start! Using a standard microSD card, you will be able to remotely upgrade firmware and other features without having to purchase a new unit.
True Loop™ impedance testing is now a standard feature on the MFT-X1. The latest 3-wire non-trip loop testing technology, incorporated with the patented Confidence Meter™, offers an unmatched, reliable, accurate, stable and repeatable loop test solution.
The MFT-X1 now includes a high resolution, high current, 2-wire loop impedance test that, with the integration of the Confidence Meter™, provides accurate measurements down to 0.001Ω resolution, with PFC/PSCC current calculation up to 50 kA.
For the first time in any multifunction tester, the MFT-X1 incorporates a stabilised insulation test voltage, ensuring output voltage is accurate to within +/-3% +2 digits. This compares to the industry standard of +20%.
